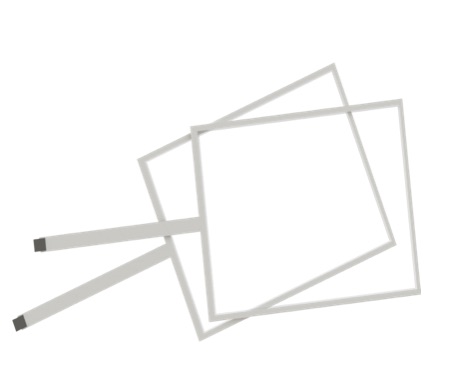

Standard Resistive Touchscreens can be produced in screen sizes from 7"~26". Resistive touch screens are suitable in many different systems and different environment.
In a 5-wire touch screen, the top layer is a sensor layer while the main circuitry is located in the layer underneath
● Surface finish: Clear or Anti-glare
● Light transmission: > 80%
● Haze: 1.5~20% (depends on design)
Sizes: 7″ to 26″ diagonal size
Tail design: FPC type, Integral tail or others
Activation force: 0.1N to 1.0N depending on design
Surface hardness: 3H or higher
● Operating temperature: -20℃ to 70℃

Projected Capacitive input touchscreens
/Standard Spec
/Import : Touch or pen
/Size: 7"~24"
/Point: 2-10 points
/Operating temperature: -20~60
/Accuracy: 1.0% by Finger
/Light transmission: 90% ↑<
/Surface hardness: 7H ↑
/OS. Support: Windows 7 / 8 Linux / Android

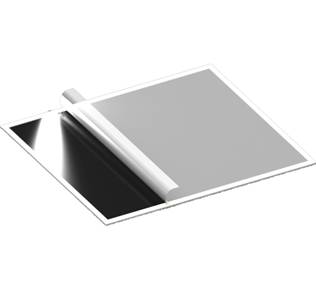

There are two GFG touch screen structures, one employs 0.3mm thin glass on top of the resistive touch screen and the other uses a HD (heavy duty) film laminate. thin glass with a clear surface finish, hardness will reach 5 Mohs and when using HD film,.
Industrial Applications
● Medical Equipment
● Equipment for the Food Industry
● Adverse and severe working conditions such as in gas stations or chemical plants
● Various marine, transportation, or air transportation operating systems

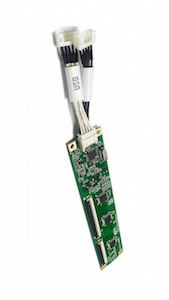

Controller chips support both RS-232 and USB, interfaces while control boards support USB . there are various board and connector types designed to meet different requirements. In terms of software, drivers support various system platforms such as Microsoft Windows, Linux, Android.

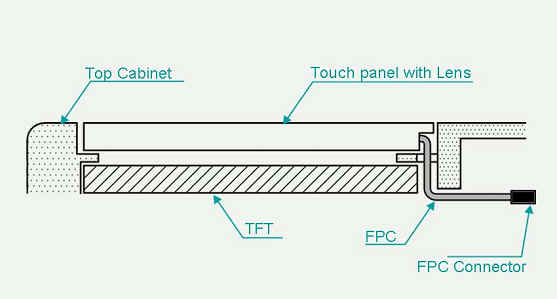

LCD(Liguid Crystal Display)+Touch Screen LCD Panel+Pcap
Size:8.4”~21.5”inch
Resoiution: 800*600 / 1024*768 1280*1024 / 1366*768
Brightness: 250cd/m2~1000cd/m2
Backlight: LED

Our in-house coating technology that has been appling on Surface CTP can satisfy most general market demands such as diamond class hard coating (7H), anti-glare (AG), anti-reflection (AR), and finger print resistance (AS). These coating options have already been applying on WDEC Projected CTP products for your choices.
